Lumishore Ora Thx204 Dedicated Driver For Blue-Only Thru-Hull Lighting [010-04514-00]

Description

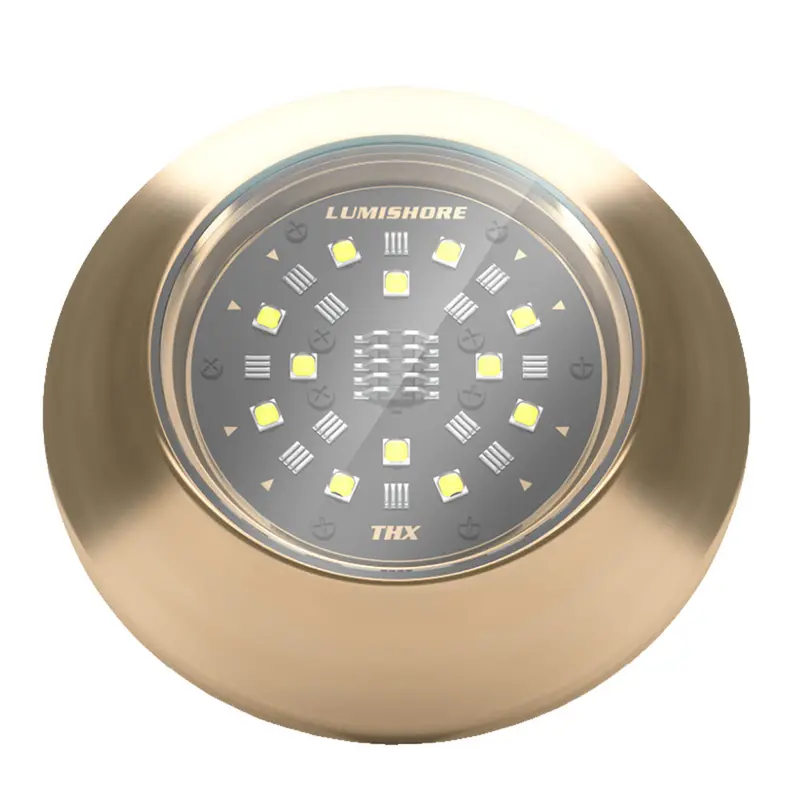

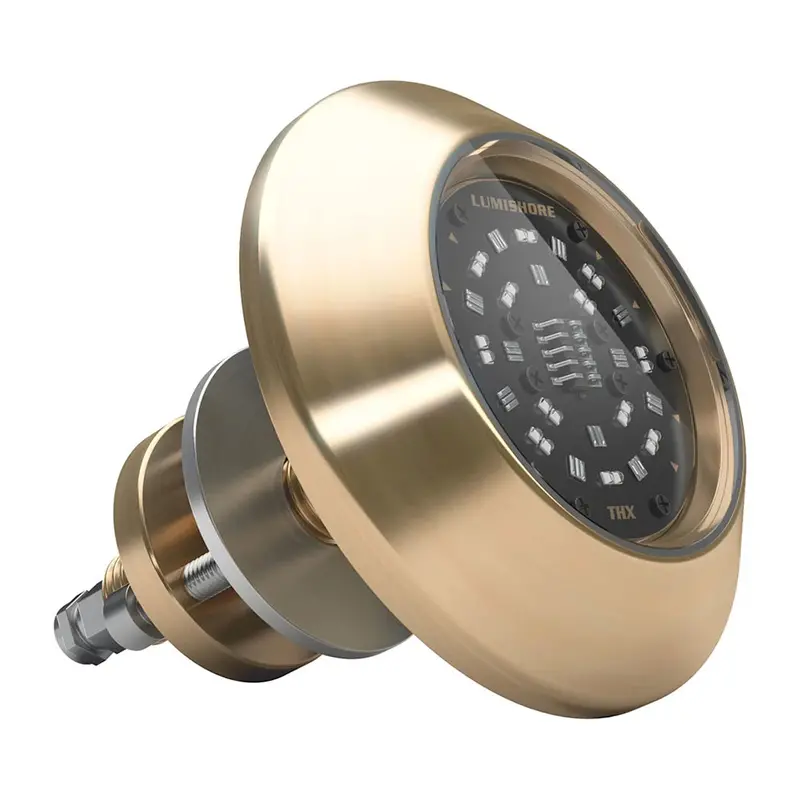

ORA THX204 Thru-Hull Single Light Blue

Lumishore’s ultra-slim thru-hull THX204 has a small hull cut-out requirement of only 5/8” (16.5mm).

The THX204 features 6,100 fixture lumens and an ultra-wide 110°beam angle, allowing the light to saturate deep into the water.

With a simple 2-wire installation and no external drivers, it’s one of the easiest thru-hull lights to install and is suitable for transom, side hull, or bottom installations.

Control the THX204 with a standard on/off switch.

Specifications:

• Color: Blue
• Lumens: 13,725
• Fixture Lumens (White): 6,100
• Number & Type Of LED: Blue – 24 x 3W High Power LEDs
• LED Power – HICOB Array: Yes
• Typical LED Life: 50,000+ Hours
• Warranty: 3 Years
• User Control Options: On/Off Switch (Third-party supplied)
• Housing Type: Marine Bronze Body with Borosilicate Glass Lens

Specifications:

• Color: Blue
• Material: Bronze
• Mounting Style: Thru-Hull
• Voltage – Input Range (Volts): 12/24V
• Box Dimensions: 5″H x 5″W x 6″L WT: 2.2 lbs
• UPC: 847772003996

Quick Guide (pdf).embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }
