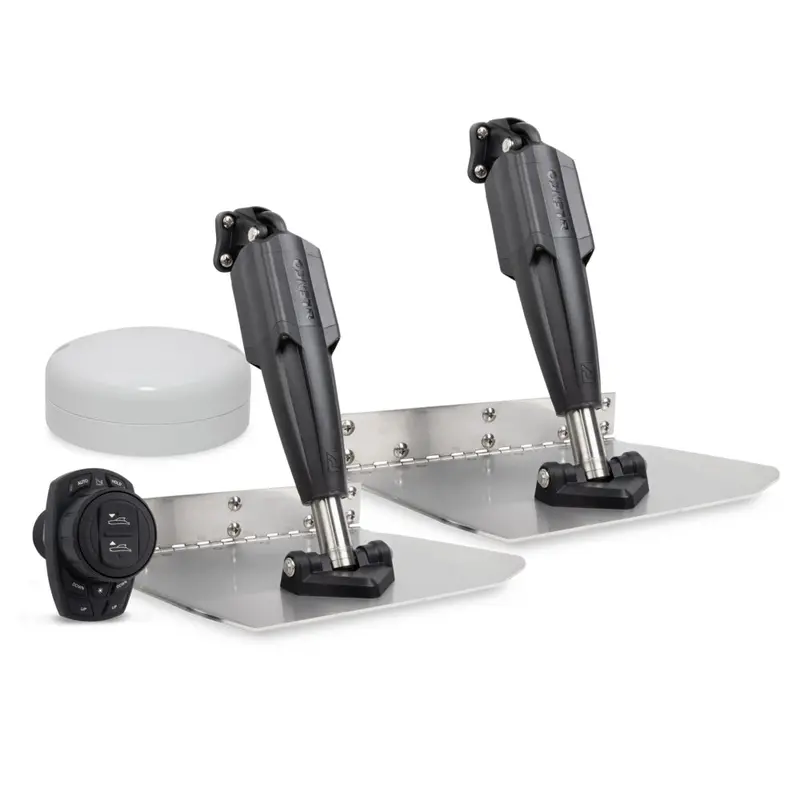

Lenco 15182-107 Standard-Mount 9″ × 12″ Trim Tab Kit With Pro Control Auto

Description

9″x12″ STD Trim Tab Kit with Pro Control™ Auto

Specifications:

• Length x Width: 9″x12″
• Boat Length: 16′-25′
• Hinge Height: 2″ (5.1cm)
• Minimum Transom Height: 14″ (35.6cm)
• Keypad: Auto

Kit Includes:

• (1) Pro Control Auto Keypad Kit (15174-107)
• (1) Pro Control Auto IMU (15180-001)
• (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
• Standard blades – with a 5/8″ (1.6 cm) flared trailing edge.
• Edge Mount blades – with 1″ (2.5 cm) turned-up edges a 5-degree taper on both sides to the trailing edge) and a 1/8″ (3.2 mm) diameter hinge pin.
• (2) 2.25” Stroke SD Pro Actuators, 11.5” pin to pin (15189-001)
• (6) Micro C Tee Connector (30267-001DD)
• Micro C Power Cable with Fuse and Ground (15197-101)
• (2) 6’ (1.82 m) Micro C Drop cables (15199-101), (1) 15’ (4.57 m) (30269-001 and (1) 25’ (7.62 m) (30269-004) Micro C Drop cables
• (2) 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (30377-001)
• (2) 3′ (.91 m) Pro Control Actuator Power Pigtail (30378-001)
• (1) Wake Signal Adapter for Non-Mercury Systems (15207-101)
• (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
• (2) Corrosion-proof Lower Mounting Brackets (15194-101)
