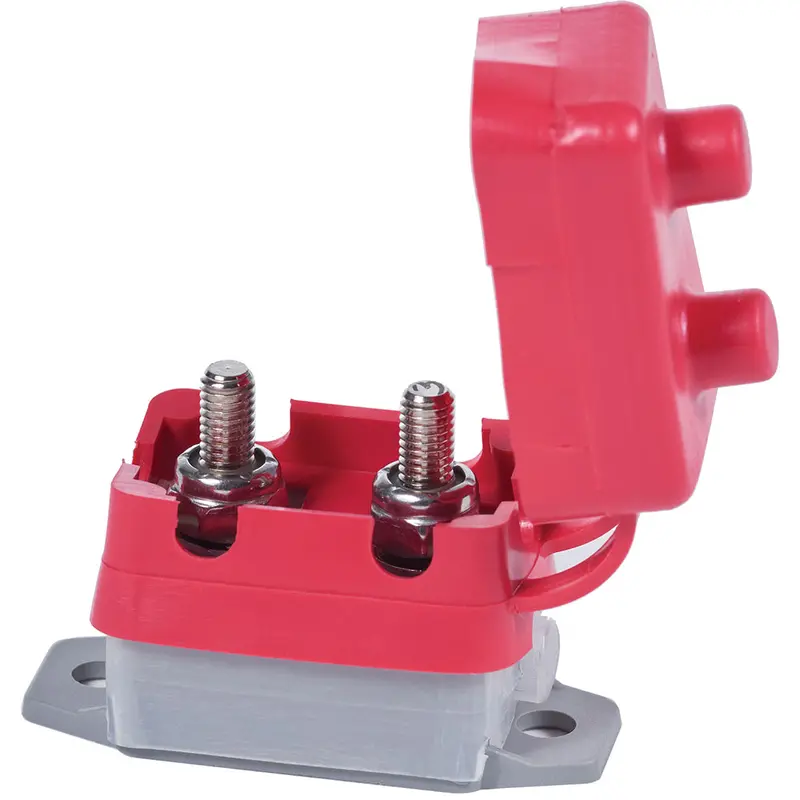

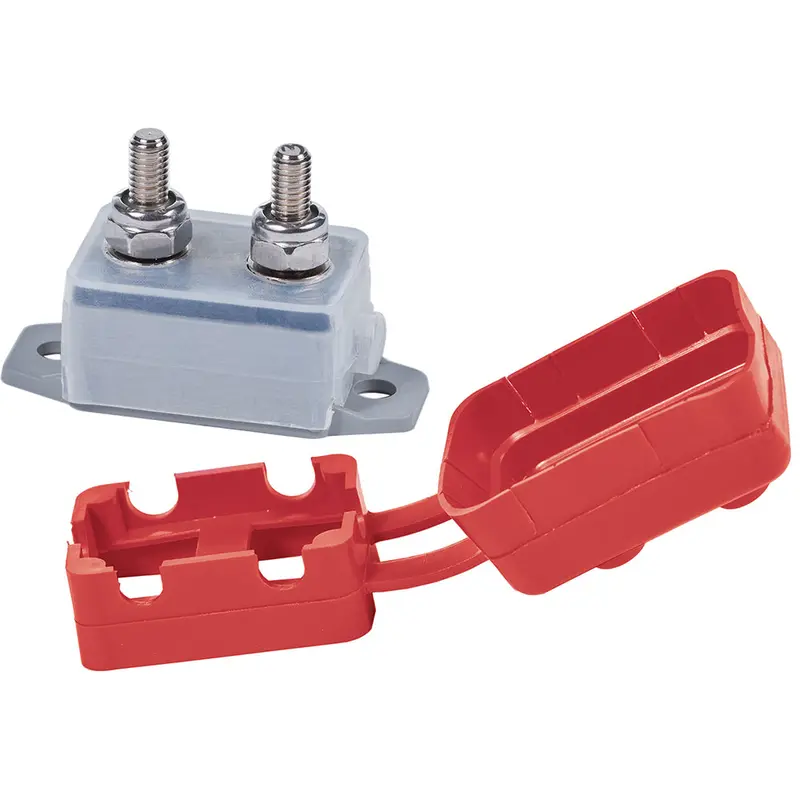

Blue Sea Systems 7156 Short Stop Resettable Circuit Breaker – 40A, 32V Dc [7156]

Description

7156 Short Stop Circuit Breaker – 40A

• Corrosion Resistant Material
• IP 64 Water Resistant Boot
• Push to Reset Only
• Interrupt Capacity: 2,500A @ 28VDC
• Red insulating boot included in retail package

Specifications

• Amperage: 40A DC
• Maximum Voltage: 28V DC
• Interrupt Capacity: 2500A @ 28V DC
• Minimum Operating Temperature: -10º C
• Maximum Operating Temperature: 60º C
• Screw Terminal Torque: 24 in-lb (2.71 Nm)
• Terminal Stud: #10-32″

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 40a
• Box Dimensions: 2″H x 3″W x 7″L WT: 0.1 lbs
• UPC: 632085071561
